RAP Cover

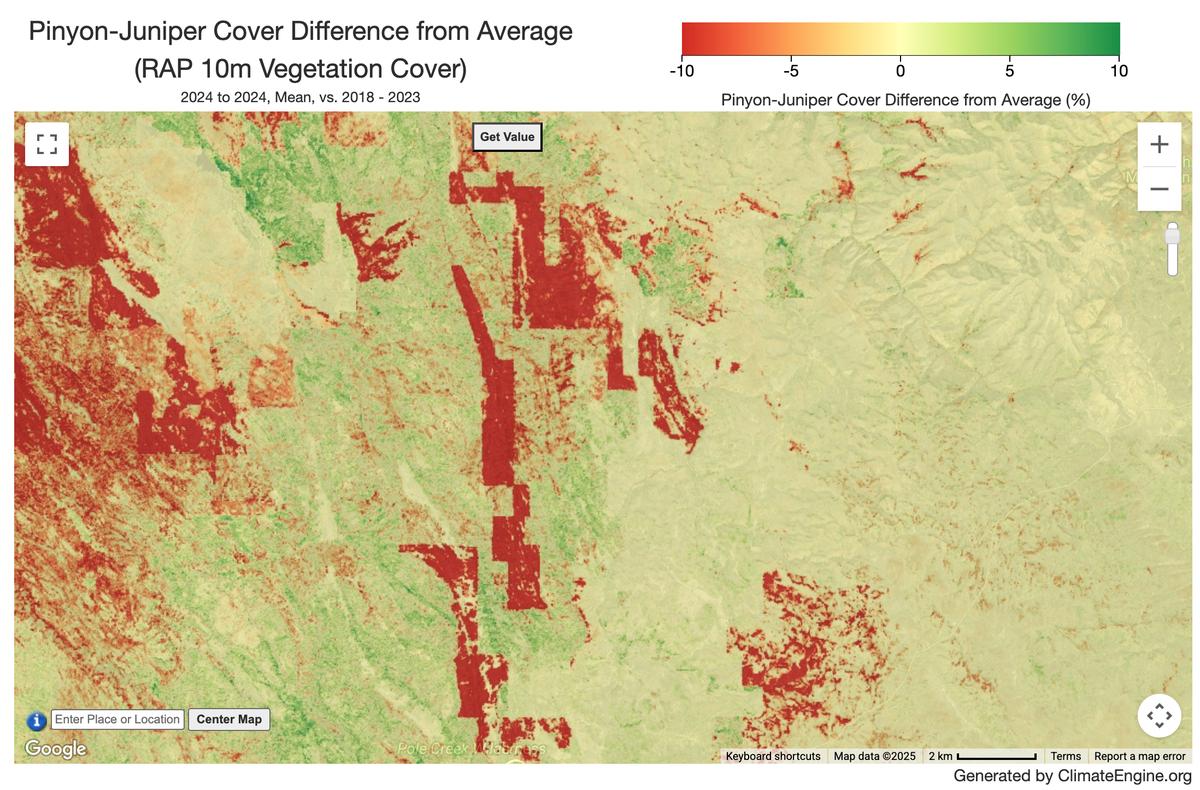

Example Pinyon-Juniper Cover Anomaly Map
Example Pinyon-Juniper Cover Anomaly Map

Remote Sensing · Climate Engine ID: RAP_COVER_10m

Dataset specifications

Spatial resolution 10m
Temporal frequency Yearly
Geographic coverage CONUS
Period of record 2018–Present

Overview

RAP Vegetation Cover 10m provides gridded annual estimates of plant functional group cover classes across rangelands in the western United States. Estimates span 2018-present and are produced at a 10-meter spatial resolution using top-of-atmosphere Sentinel-2 reflectance and a one-dimensional convolutional neural network (1D CNN). The model was trained on 47,833 field plots collected via the Natural Resource Conservation Services' Natural Resources Inventory (NRI), Bureau of Land Management's Assessment, Inventory, and Monitoring (AIM) program, National Park Service, and other contributors. The dataset includes fractional cover for 10 plant functional groups and land cover types-Annual Forbs and Grasses, Perennial Forbs and Grasses, Shrubs, Trees, Litter, Bare Ground, Invasive Annual Grasses, Sagebrush, Pinyon-Juniper. Predictions were made using temporally segmented and log-normalized Sentinel-2 reflectance, spatial coordinates, and derived vegetation indices (NDVI, NBR2). The model demonstrated strong predictive performance and showed slight improvements when compared with 30-m Landsat-based vegetation cover estimates by capturing finer-scale spatiotemporal heterogeneity critical to modeling rangeland ecosystems. Output is provided as annual 10 m GeoTIFFs available and as Google Earth Engine assets.

Variables

9 variables available.

API variable documentation

Variable Units
Annual Forb and Grass Cover %
Bare Ground Cover %
Invasive Annual Grass Cover %
Litter Cover %
Perennial Forb and Grass Cover %
Pinyon-Juniper Cover %
Sagebrush Cover %
Shrub Cover %
Tree Cover %

Source and access

Source catalog: Awesome GEE Community Catalog

Earth Engine assets

  • projects/rap-data-365417/assets/vegetation-cover-10m

Usage and attribution

Processing notes

No processing notes provided.

References

  1. Allred, B. W., McCord, S. E., Assal, T. J., Bestelmeyer, B. T., Boyd, C. S., Brooks, A. C., Cady, S. M., Fuhlendorf, S. D., Green, S. A., Harrison, G. R., Jensen, E. R., Kachergis, E. J., Mattilio, C. M., Mealor, B. A., Naugle, D. E., O'Leary, D., Olsoy, P. J., Peirce, E. S., Reinhardt, J. R., Shriver, R. K., Smith, J. T., Tack, J. D., Tanner, A. M., Tanner, E. P., Twidwell, D., Webb, N. P., & Morford, S. L. (2025). Estimating rangeland fractional cover and canopy gap size class with Sentinel-2 imagery. bioRxiv. https://doi.org/10.1101/2025.03.13.643073

Terms of use

Public Domain-CC0
