Landsat 5/7/8/9 TOA

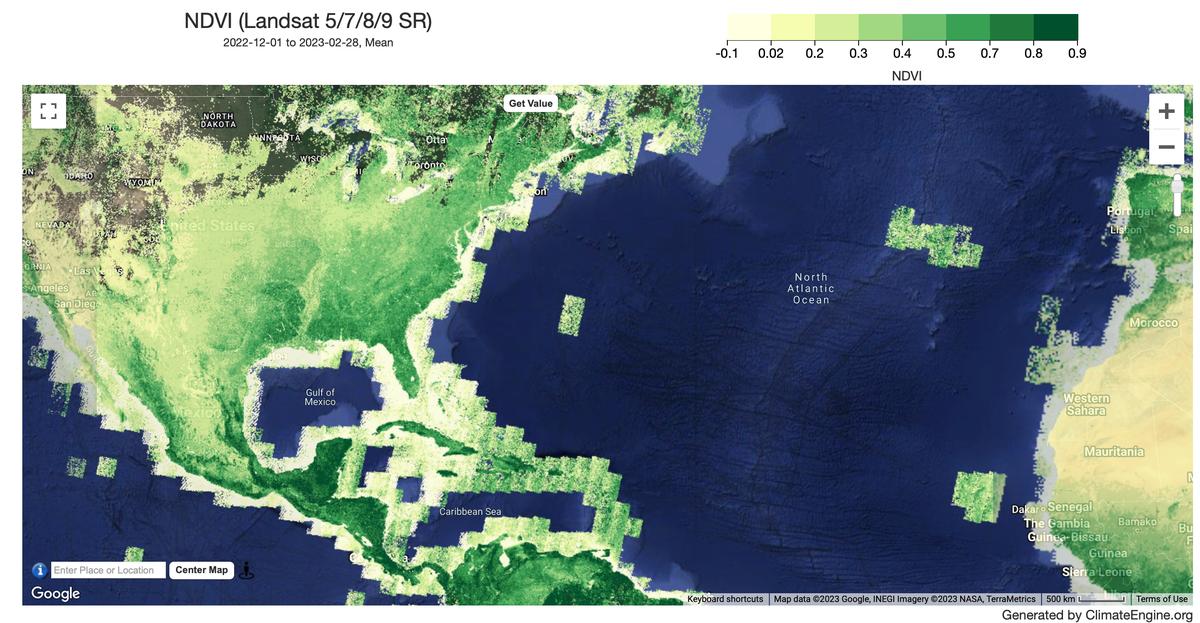

Example Dec-Feb Normalized Difference Vegetation Index (NDVI) Map
Example Dec-Feb Normalized Difference Vegetation Index (NDVI) Map

Remote Sensing · Climate Engine ID: LANDSAT_TOA

Dataset specifications

Spatial resolution 30m
Temporal frequency 16 Day
Geographic coverage Global
Period of record 1984–Present

Overview

Merged Landsat 5/7/8/9 top of atmosphere reflectance data in visible, near, and short wave infrared and thermal bands.

Variables

30 variables available.

API variable documentation

Variable Units
AVI —
Blue —
Blue/NIR ratio —
Chlorophyll A calculated from Green and Blue bands —
DVI —
EVI —
False Color —
FCVI —
Green —
Green/Blue ratio —
Green/NIR ratio —
Green/Red ratio —
Land Surface Temperature —
MSAVI —
NBR —
NDSI —
NDVI —
NDWI (Green/SWIR2) —
NDWI (Green/NIR) —
NDWI (Green/SWIR1) —
NDWI (NIR/SWIR1) —
NDWI (SWIR1/Green) —
NIR —
Red —
Red/Blue ratio —
Red/NIR ratio —
SAVI —
SWIR1 —
SWIR2 —
True Color —

Source and access

Source catalog: Earth Engine Catalog

  • Dataset website
  • Earth Engine documentation: See individual landsat collection paths

Earth Engine assets

  • LANDSAT/LT05/C02/T1_TOA
  • LANDSAT/LE07/C02/T1_TOA
  • LANDSAT/LC08/C02/T1_RT_TOA
  • LANDSAT/LC09/C02/T1_TOA

Usage and attribution

Processing notes

  1. The Collection 2 CFMask algorithm is applied to each Collection 2 Surface Reflectance dataset. The cloud masking attempts to remove medium and high confidence snow, shadow and cirrus clouds using the BQA quality band provided in the Landsat GEE collection. You can read more about the mask here.
  2. The Collection 2 RADSAT mask is applied to each Collection 2 Surface Reflectance dataset. You can read more about the mask here.
  3. Scaling and offset are applied. Band order is changed to align with Landsat
  4. Band names are changed to common names. Pan-chromatic band, high gain thermal band, Coastal Band, Cirrus Band are not included.4) NOTE: We do not apply additional harmonization between Landsat sensors. While the need for harmonization coefficients in Landsat Collection 1 was demonstrated, Landsat Collection 2 Tier 1 products, as provided in Climate Engine, are considered appropriate for cross-sensor timeseries analysis without additional harmonization. See our article for more information.

References

No references listed.

Terms of use

Landsat datasets are federally created data and therefore reside in the public domain and may be used, transferred, or reproduced without copyright restriction. Acknowledgement or credit of the USGS as data source should be provided by including a line of text citation such as the example: (Product, Image, Photograph, or Dataset Name) courtesy of the U.S. Geological Survey. See the USGS Visual Identity System Guidance for further details on proper citation and acknowledgement of USGS products.
